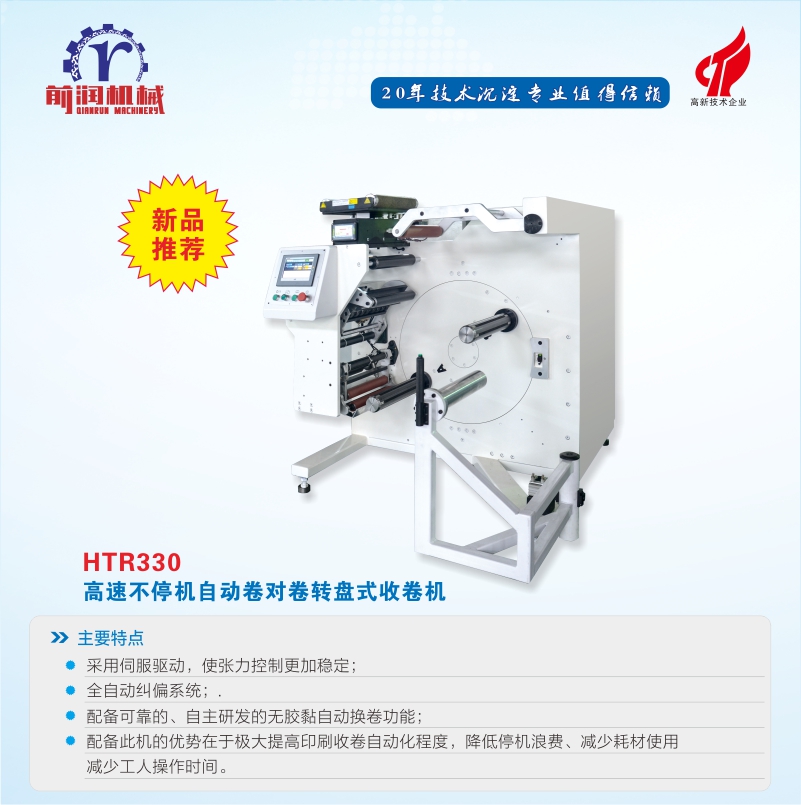

| Model | HTR330 |
| Max. Rewinder Diameter（mm） | Φ800 |
| Max. Paper Width(mm) | 330 |
| Max. Speed(m/min) | 180 |
| Rectifying Mode | Ultrasonic |
| Paper Receiving | Auto |
| Discharging | Manual |
| Air Pressure | 80Psi（5.5Ati） |
| Power | 380V(3 phase） |
| Overall Size(mm) | 1360x1840x1400 |
Features
1、Adopt servo drive to make tension control more stable
2、Full automatic correction system
3、Equipped with reliable and self-developed automatic roll changing function without glue
4、The advantage of equipped with this machine is to greatly improve the automatic degree of printing roll up, reduce downtime waste and reduce the use of consumables
5、Reduce the operation time of workers
.jpg)

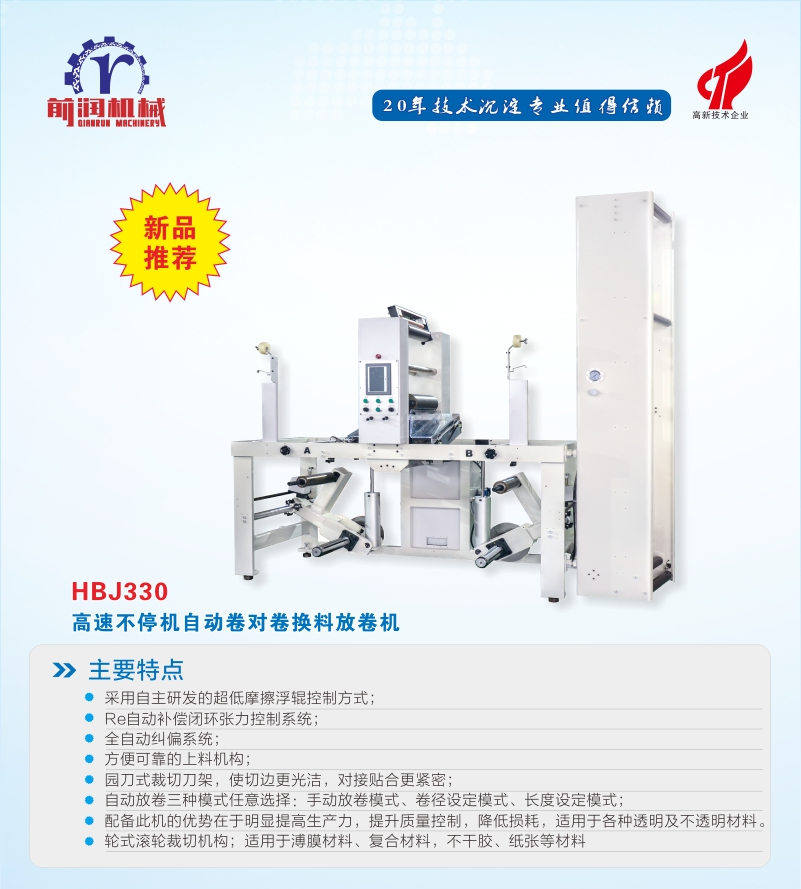

| Model | HBJ330 |
| Max. Rewinder Diameter（mm） | 800mm |
| Max. Paper Width(mm) | 330mm |
| Max. Speed(m/min) | 180m/min |
| Rectifying Mode | Ultrasonic |
| Paper Receiving | Auto |
| Paper Receiving Angle | 14.5 |
| Air Pressure | 80Psi（5.5Ati） |
| Power | 380V(3 phase） |
| Overall Size(mm) | 2480x1840x2500 |
Features
1、Self-developed control mode of ultra-low friction floating roller
2、Re closed-loop tension control system with automatic compensation
3、Full automatic correction system
4、Covenient and relable feeding device
5、Rotary cutter makes cutting edges more clean
6、Three mode of automatic unwinding: maual unwinding, roller diameter setting, roller length setting
7、The advantage of equipped with this machine is to greatly increase the productivity and quality control, reduce the losses
8、Applicable materials: PP materials, composites materials, adhersive tapes, papers etc.
